Upgrading from a Standalone PAM to PAM HA Pair

This section looks at how to upgrade from an existing standalone PAM Server to a PAM HA Pair configuration.

Prerequisites

Before you can configure a PAM HA Pair you will need the following prerequisites:

Prerequisite Description
Upgrade path Review the Upgrade paths to ensure you are applying the correct upgrade method based on the version you are upgrading from and to.
Hardware and Software Ensure the correct resources are available before upgrading. The following outlines the hardware and software requirements.

Prerequisites
Software downloads Download the latest upgrade kit click here.
Disk space Ensure the internal disk has a minimum of 5GB free disk space.
Recent backup We recommend that you have a recent PAM backup as well as VM level backup or snapshot of the standalone PAM Server being upgraded.
No active user connections Ensure there are no active user connections.
Disable Task 'Regenerate Account Credentials for all devices' Within the Admin Interface, disable all scheduled Regenerate Account Credentials for all devices tasks within profiles.
Osirium Support account Within the Admin Interface ensure the Osirium Support account has been enabled and a password set.
.local DNS domains If you are using .local DNS domains, ensure matching records have been entered in the DNS Search Suffixes.
No Reporter role users The Reporter role was removed from 9.x and is no longer available, if you are upgrading from an earlier version, any associated user groups configured within this role will have to be removed before upgrading. Upgrades will be blocked if they are not removed. For further information see Managing roles.

We also recommend the following:

Prerequisite Description
SMB filestore RECOMMENDED
Configure an SMB filestore to store Session Recording files. For instructions click here SMB Filestore.
Floating IP address RECOMMENDED
Allocating a floating ip address will allow the ip address to be dynamically assigned to the active PAM Server. This means the user will only need a single ip address when connecting to PAM and not have to switch ip addresses if a failure occurs.

Upgrade procedure

The diagram provides a high-level overview of the process for upgrading a standalone PAM Server to a PAM HA Pair configuration.

Standalone to PAM HA Pair upgrade procedure flowchart

Upgrade standalone

Upgrade steps

Upgrading the Standalone PAM Server

  1. Open a file transfer tool of your preference and copy the upgrade kit onto the standalone PAM Server using the osirium_support account.

  2. Open the PAM Server Console window, then press ALT + F2. The server login prompt appears.

    Note

    Alternatively, you could use an SSH connection to the PAM Server.

    Console window

  3. Enter osirium_support at the login prompt and press ENTER.

  4. When prompted, enter the password of the osirium_support account and press ENTER.

  5. Extract the upgrade kit copied to the server using the following command:

    sudo bash Osirium_PAM_Server_vA.B.C_upgrade.bin

    Where A.B.C is the version you are upgrading to.

  6. When the kit has been extracted, type the command specified on the screen and press ENTER.

  7. Press ENTER when prompted to start the setup and configuration.

  8. The EULA screen will be displayed. Press ENTER once you have read it.

  9. Wait while the upgrade completes and the server is rebooted.

We highly recommend that an SMB filestore is configured to maintain resilience and ensure session recordings continue to be available in case of any failovers.

Warning

If an SMB filestore is not configured then you are at risk of losing files stored locally on the PAM Server.

To configure:

  1. Within the Admin Interface navigate to the System configuration > System settings tab.

  2. Click on the Edit pencil next to SMB share configuration.

  3. Enter the SMB share details.

    SMB Filestore Configuration

    Field name Description
    UNC path The UNC path by which PAM can connect to the SMB share.

    For example \server-name\shared-resource-pathname
    Username The username of the SMB share location.
    Password The password of the SMB share location.
    Options (comma-separated) Optional
    Allows additional parameters to be passed to the SMB share as a comma separated list if required.

  4. Click SAVE.

  5. Click on the Edit pencil next to File store.

  6. Select SMB Share and click SAVE.

Deploy Second PAM Server

To create the HA Pair you will need to create a Secondary PAM Server. Deploy the software package into your chosen supported infrastructure. Click on the appropriate link below to be navigated to the deployment steps.

Configure the HA Secondary

Follow these configuration steps if you are setting up a Secondary server.

  1. Within the Console window, press ENTER when prompted to start the setup and configuration.

  2. Read and accept the EULA to continue.

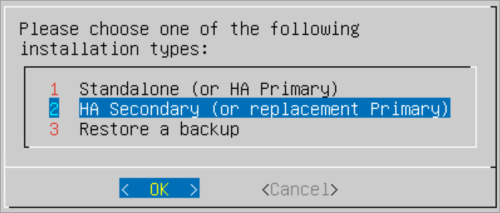

  3. Select HA secondary (or replacement primary) as the installation type.

    Installation Type

  4. Within the Configure Networking screen, configure the following server settings. Press TAB to navigate between the fields.

    • IP Address: Enter the IP Address which will be used to connect to the server.
    • Netmask: Enter the network mask.
    • Gateway: Enter the network default gateway IP address.
    • Primary DNS: Enter the network primary DNS IP address.
    • (Secondary DNS): Enter the secondary DNS IP address if relevant, else leave blank.
    • (Tertiary DNS): Enter the tertiary DNS IP address if relevant, else leave blank.
    • (DNS Suffixes): Enter the DNS Suffixes. Multiple entries can be separated with a comma, else leave blank.

    Note

    If you are using a .local domain, DNS suffixes MUST be added.

    Configure Networking

  5. Once completed TAB down to the OK button and press ENTER.

  6. Within the Enter a hostname window, enter a name to identify the new server.

  7. TAB down to the OK button and press ENTER.

  8. Once the setup has completed a message will be displayed. Your system is now ready for High Availability.

    Make a note of the joining code displayed on the screen as it will be required to initialise your PAM HA pair.

    Joining code

Initialise High Availability

Once you have upgraded your standalone PAM Server and deployed and configured your Secondary server, the final step is to initialise your HA pair and setup replication.

  1. Open up a web browser and enter the address of the Primary server:

    [PAM Server Address]:8443

    You will be presented with the Management Interface.

  2. Login with a username and password.

    Note

    PAM user must belong to the PAM Owner group that gives them Owner role level access to PAM.

    Management Interface

  3. You will be presented with Management Interface SSH window.

    Management Interface shell window

  4. At the prompt type ha-initialise and press ENTER.

    Note

    If an SMB share is not configured you will be presented with a warning message. We recommend you configure an SMB share before continuing.

    SMB Share warning

  5. Enter the IP address of the Secondary server and press ENTER.

    Enter secondary PAM Server IP Address

  6. Enter a floating IP address and press ENTER.

  7. Read what will happen on the Secondary server then type y and press ENTER to continue.

    Secondary operation list

  8. Enter the joining code of your Secondary server which can be found on the server console window and press ENTER.

    Secondary Server Joining code

    Enter Joining Code

  9. Wait while the joining procedure completes.

  10. When the operation has completed, review the follow-up actions listed and complete as required.

    Connect to secondary management

HA Pair configuration is now complete.

Post upgrade tasks

Once the PAM Server upgrade to a HA Pair has successfully completed, log on to the Primary server and check the following before allowing users to reconnect:

Post upgrade task Description
Trigger AD audit Before opening any device connections that use an Active Directory account, an audit needs to be manually triggered on all provisioned Active Directories.

You can do this by right clicking the Active Directory on the Manage Active Directory page, and select Trigger audit from the menu.
Check device states Check device status to ensure they are running successfully.
Check user connections Check users can connect to devices.
Re-enable scheduled tasks Re-enable scheduled Regenerate Account Credentials for all devices tasks.
Backup Run the Osirium PAM Server backup task as well as VM level backup of both the HA Pair PAM Servers.
Upgrade PAM UI If you are using a standalone PAM UI Server then use the PAM Component Compatibility Matrix to check if the PAM UI Server needs updating inline with the PAM version you have upgraded to. Upgrade as appropriate.
Upgrade MAP Server If you are using a MAP Server then use the PAM Component Compatibility Matrix to check if the MAP Server needs updating inline with the PAM version you have upgraded to. Upgrade as appropriate.
