Installation

Installation of Opus should take around 5 minutes.

You will:

  • Create a new virtual machine.
  • Power it on and note down the appliance's IP address.

Hint

This guide is for the vSphere HTML5 client.

Creating the Virtual Machine

Deploy OVF Template

Right-clicking a folder in the Hosts and Clusters pane of vSphere will show the actions menu. Select the Deploy OVF Template action:

Actions menu

This will open the Deploy OVF Template dialog.

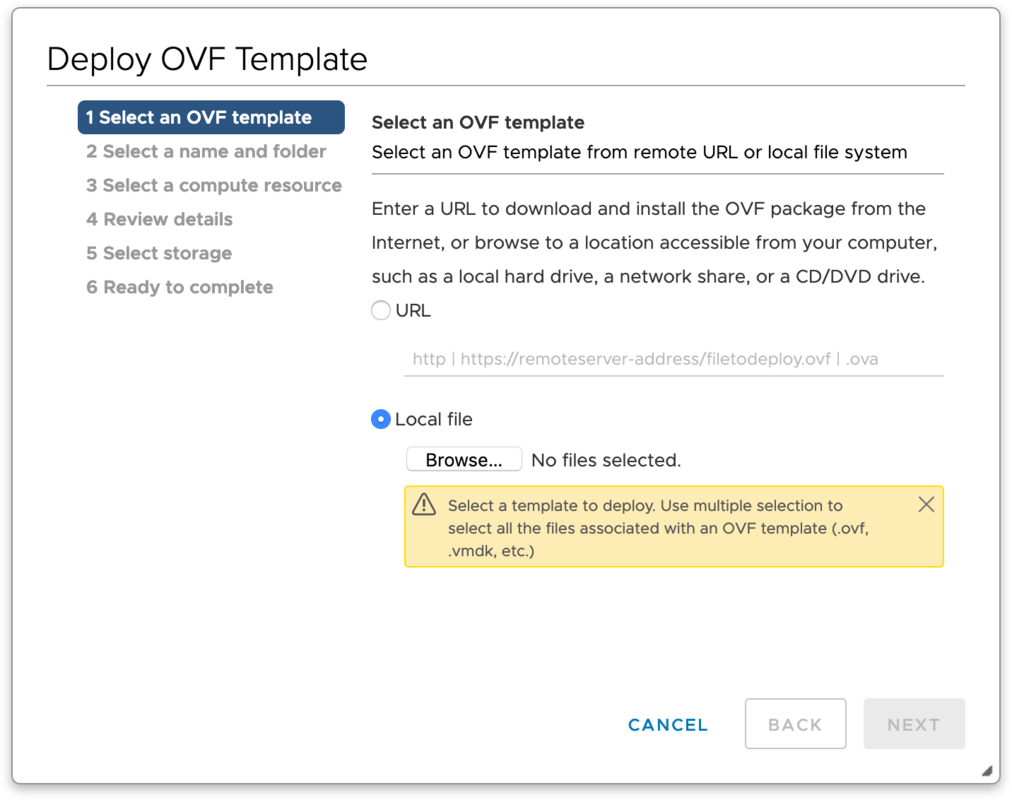

Select an OVF template

Find the appropriate OVA from the releases page.

Either download and verify the OVA locally, or deploy Opus directly from our website over TLS using the URL text box:

Deploy OVF Template – Select an OVF template

Select a name and folder

Select the folder where Opus will be deployed and give the new virtual machine a name:

Deploy OVF Template – Select a name and folder

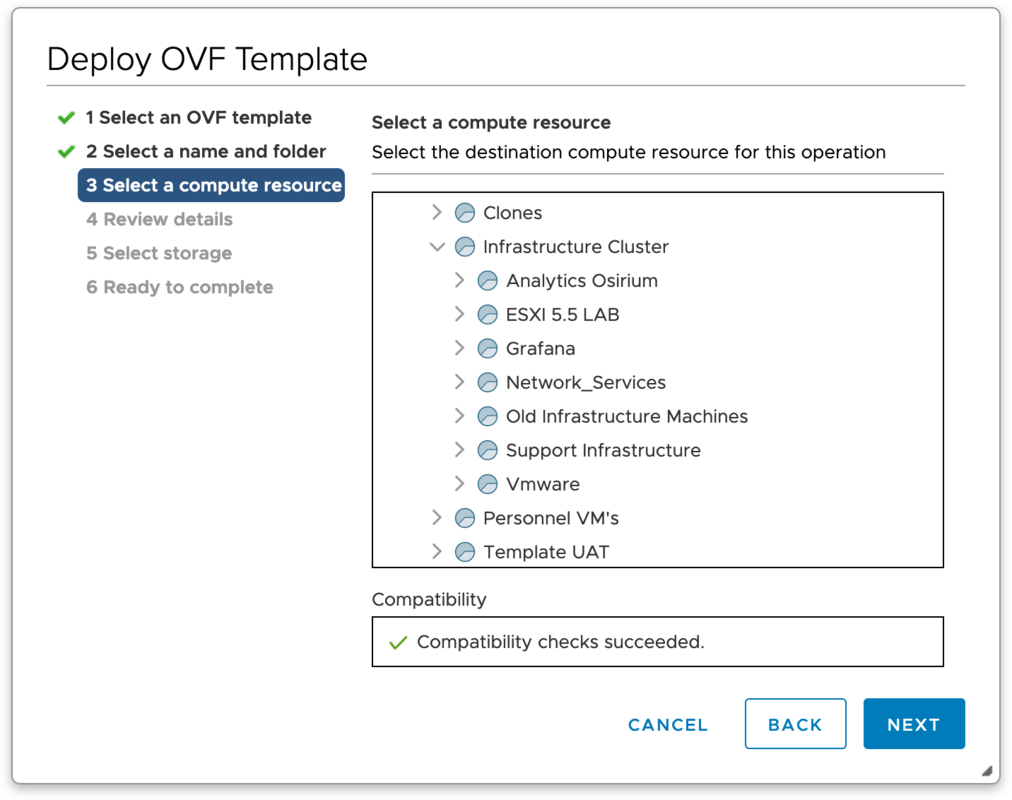

Select a compute resource

Select a resource pool for the virtual machine to use:

Deploy OVF Template – Select a compute resource

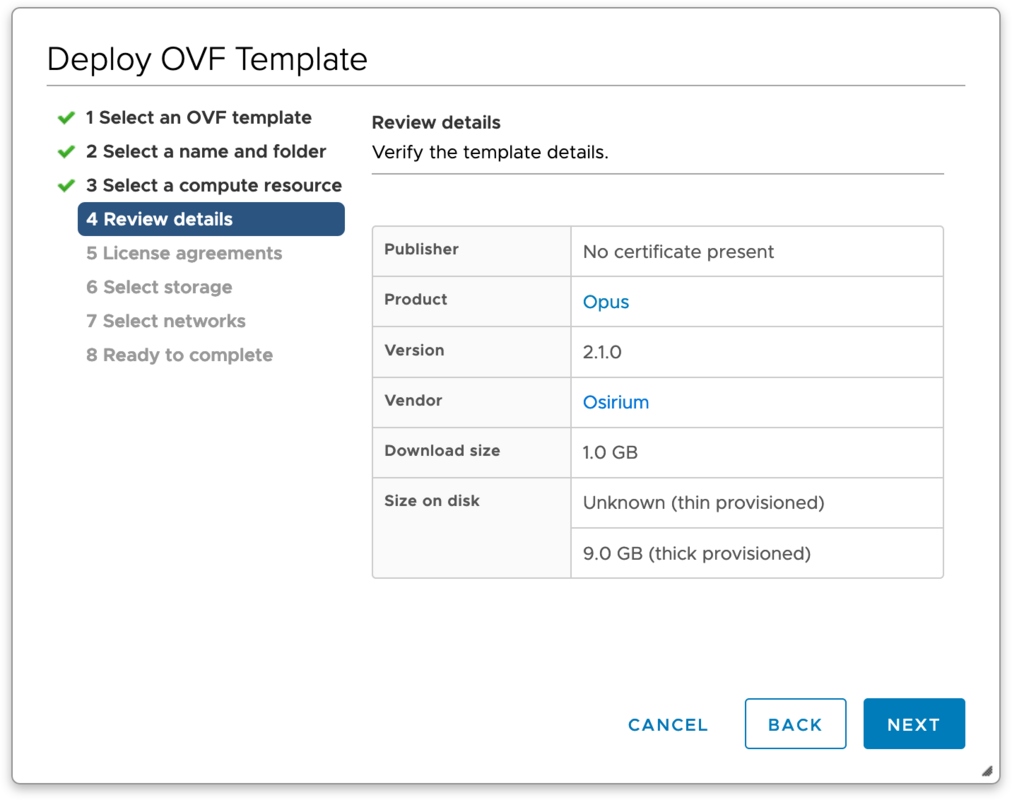

Review details

Review the OVA information:

Deploy OVF Template – Review details

License agreements

Read and accept the license agreements:

Deploy OVF Template – License agreements

Configuration

The Opus OVA comes with two configuration options:

Name vCPUS Memory Disk Purpose
Minimum Spec 2 4GB 8GB Testing with a handful of users
Production Deployment 4 8GB 80GB Active deployment in daily use

Note

It is easy to allocate more resources to Opus if you decide to take a test system live.

Select the desired configuration:

Deploy OVF Template – Configuration

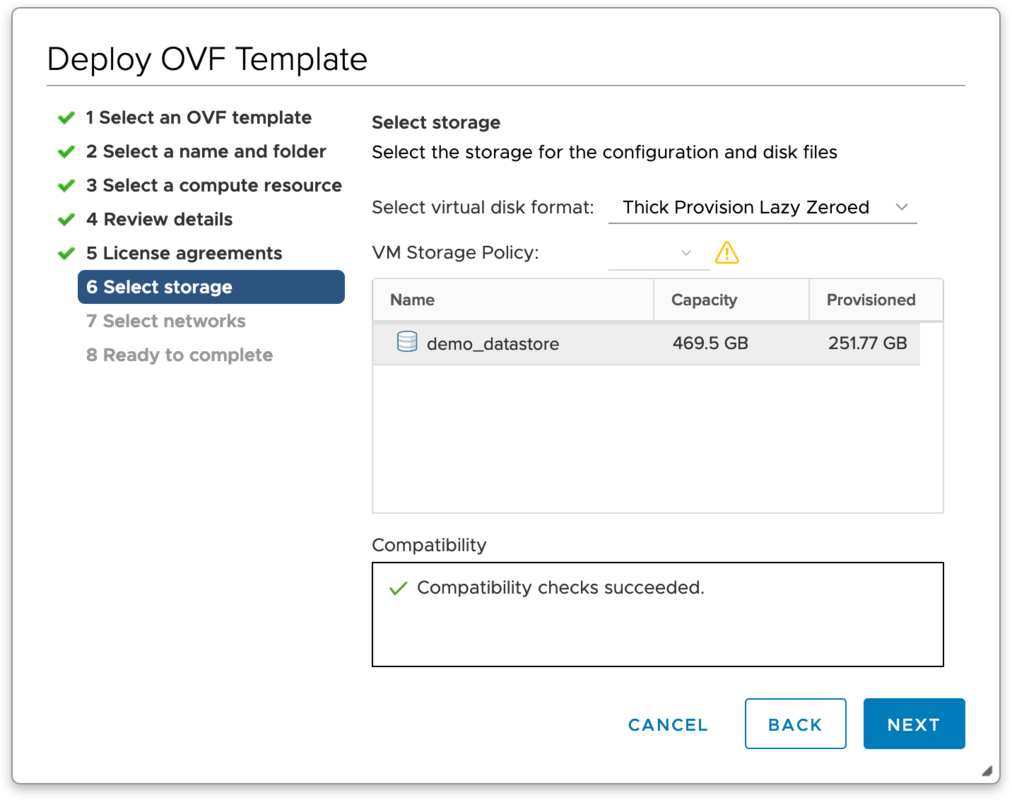

Select storage

Select the datastore the virtual machine will be deployed to:

Deploy OVF Template – Select storage

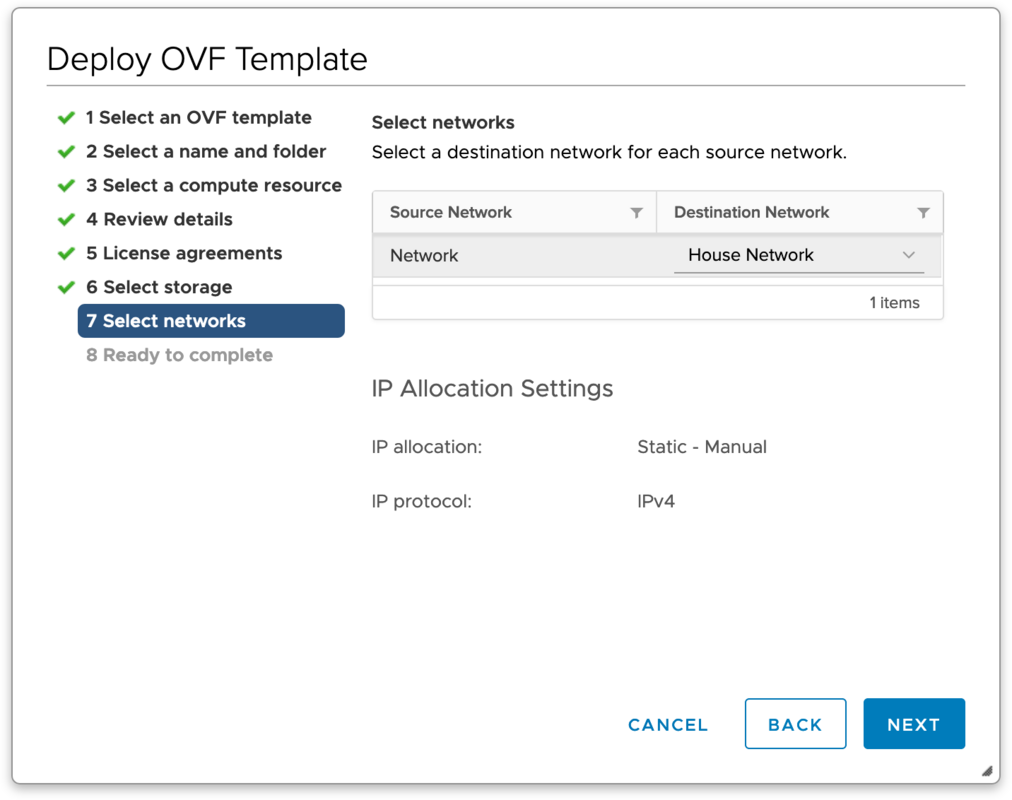

Select networks

Select a network to connect the virtual machine to:

Deploy OVF Template – Select networks

Customize template

Increase the size of the storage disk if necessary. The storage disk holds the database and all of the task images that users can run on this Opus. A minimum of 8GB is required:

Deploy OVF Template – Customize template

Ready to complete

Review and accept the settings:

Deploy OVF Template – Ready to complete

The OVA will now begin to deploy. Follow its progress in the Recent Tasks pane.

First Boot

Powering on

The virtual machine will be in the powered off state by default. Once the virtual machine has finished deploying, right-click it and select Power > Power On:

Actions > Power > Power On

DHCP

On first boot Opus will attempt to acquire an address using DHCP. VMWare Tools will launch after a couple of minutes and report the IP address to vSphere:

Virtual Machine - Summary

Tip

It may take a while for VMware to report the IP address.

The IP address of the appliance is also available via the Remote Console by typing ifconfig eth0.

Next

Make a note of this address and continue to configuration.
